DALE BROTHERS TEMPERATURE CONTROLLED STORAGE UNIT, TELFORD

McPhillips was appointed as the principal contractor for this steel framed cold storage warehouse and office development for temperature controlled food distribution specialists Dale Brothers on a JCT 2016 Design & Build contract.

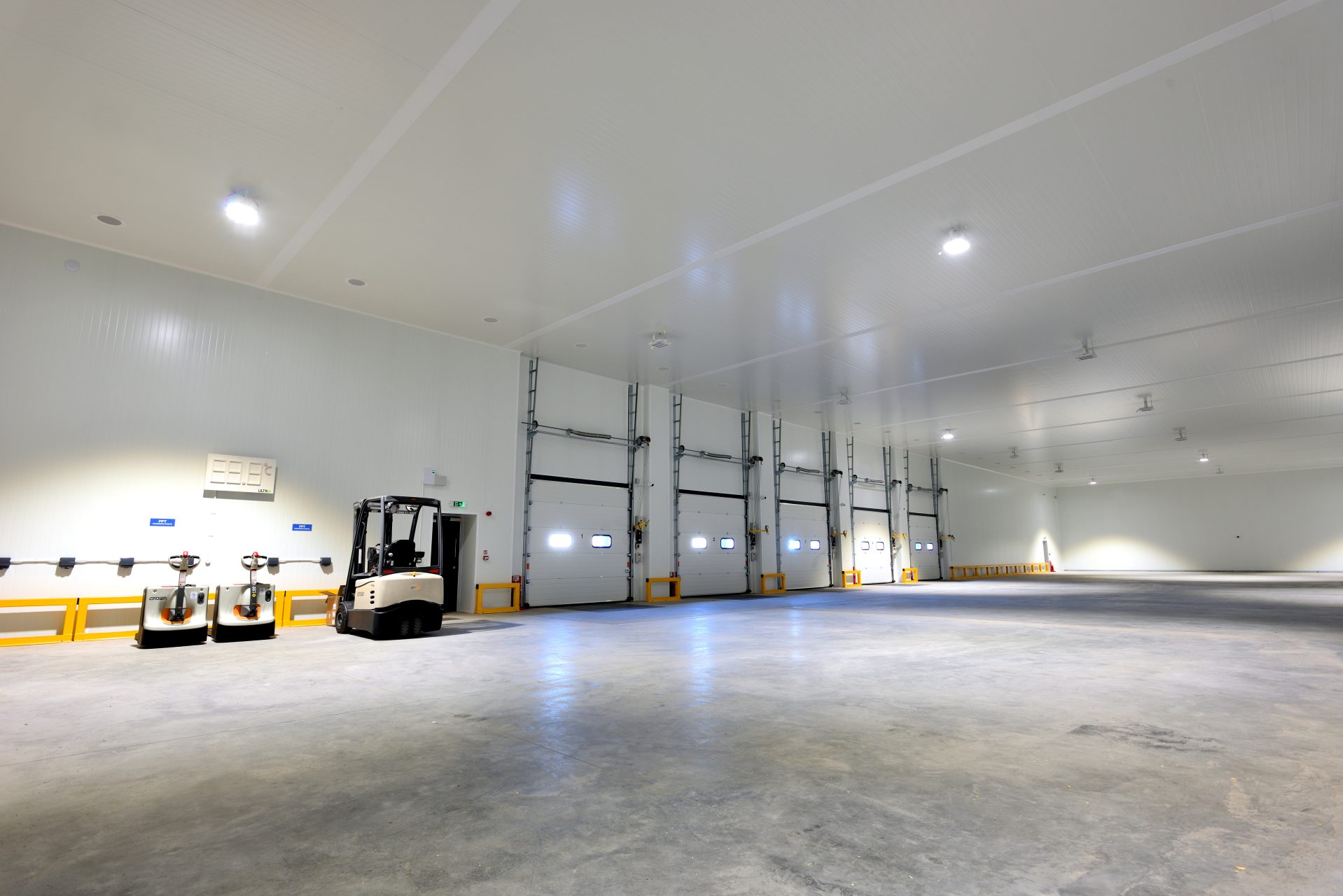

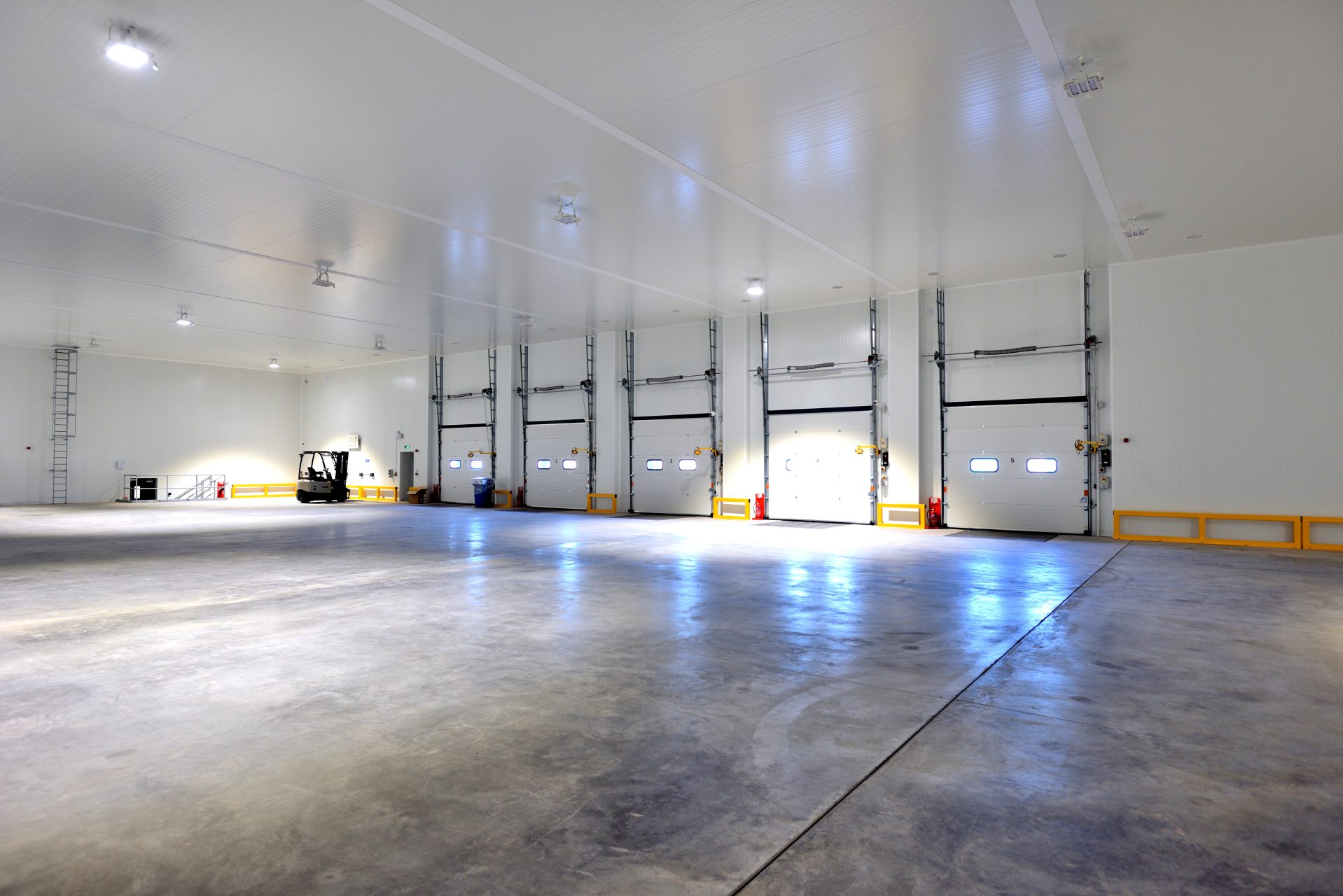

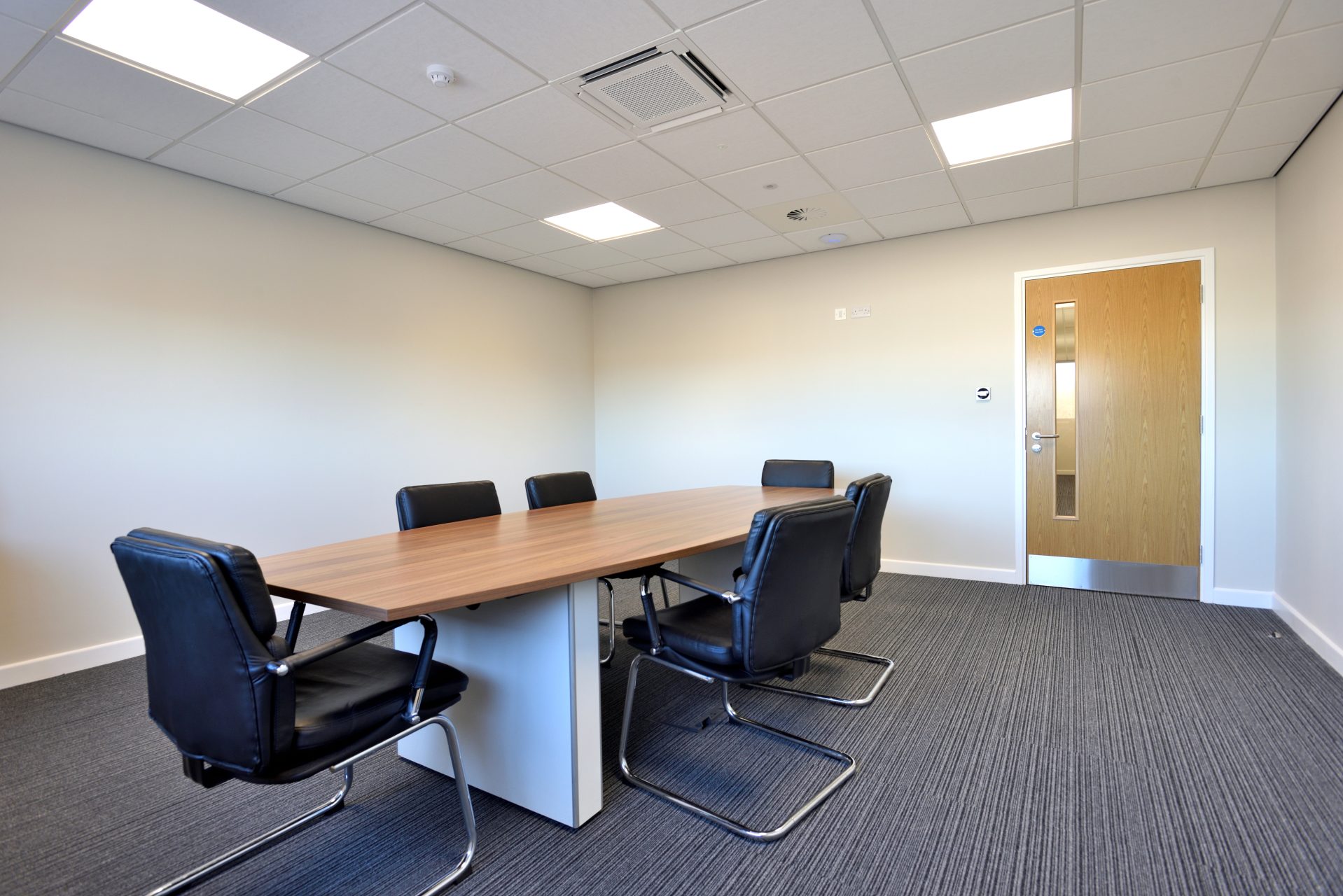

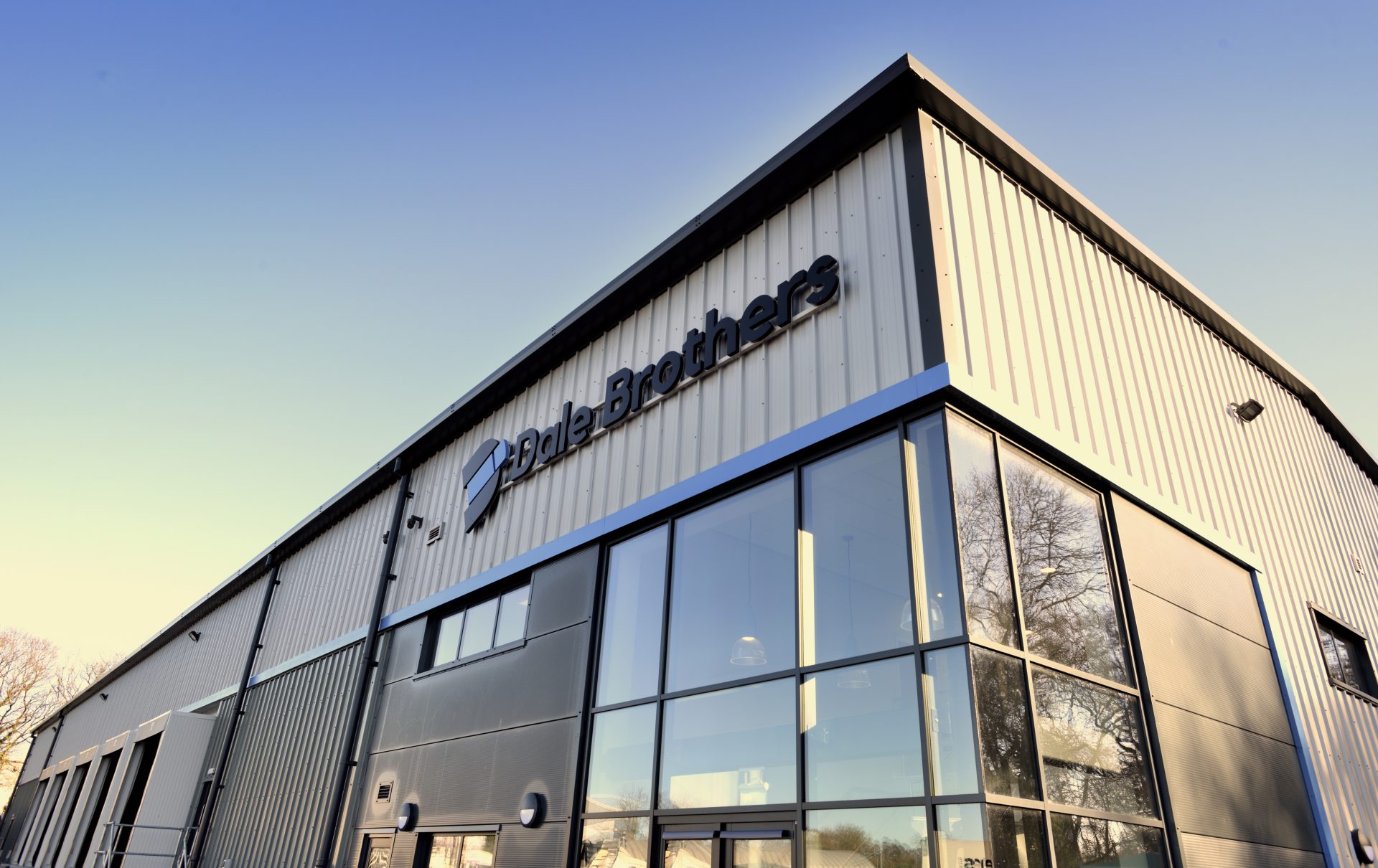

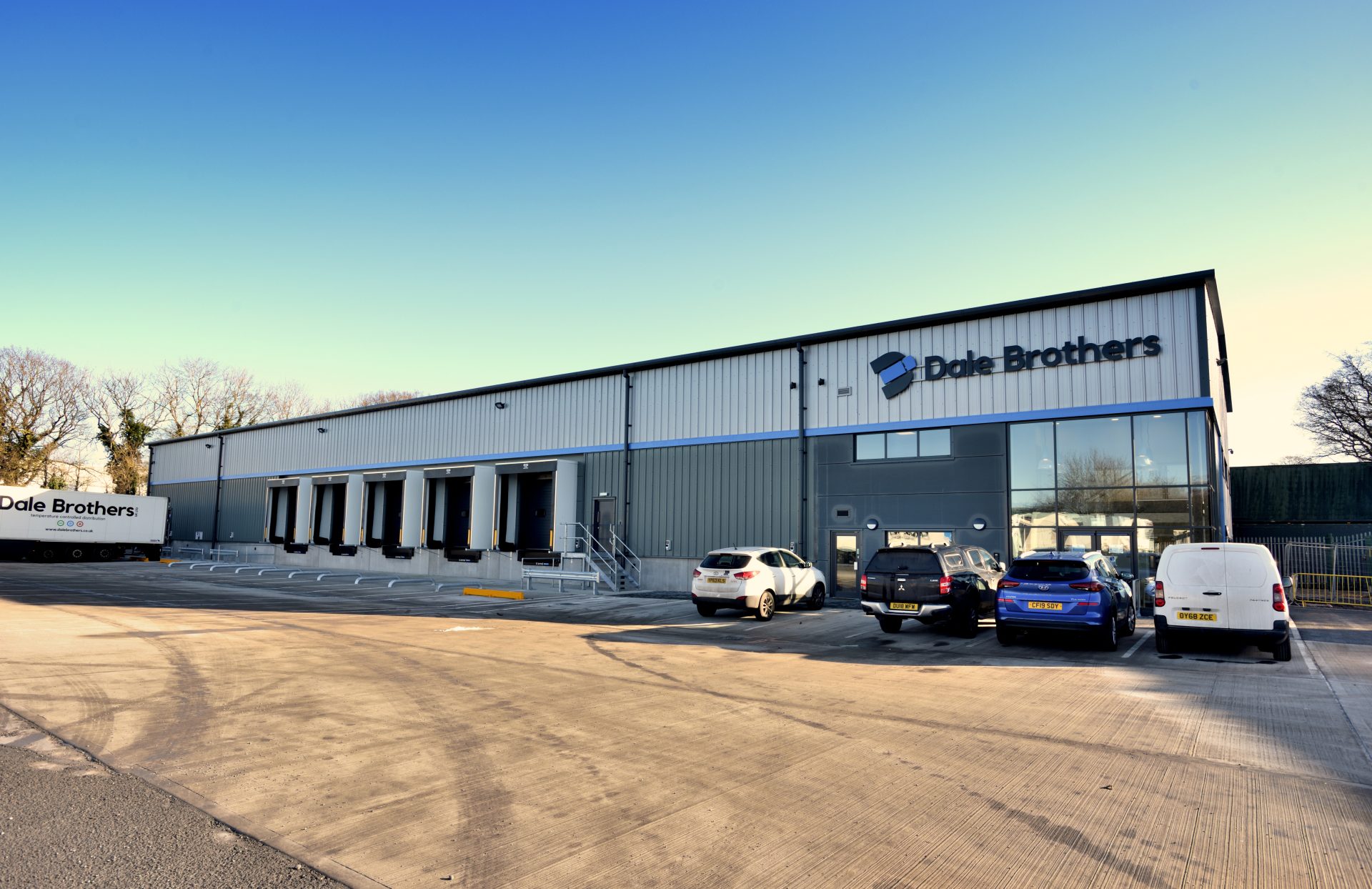

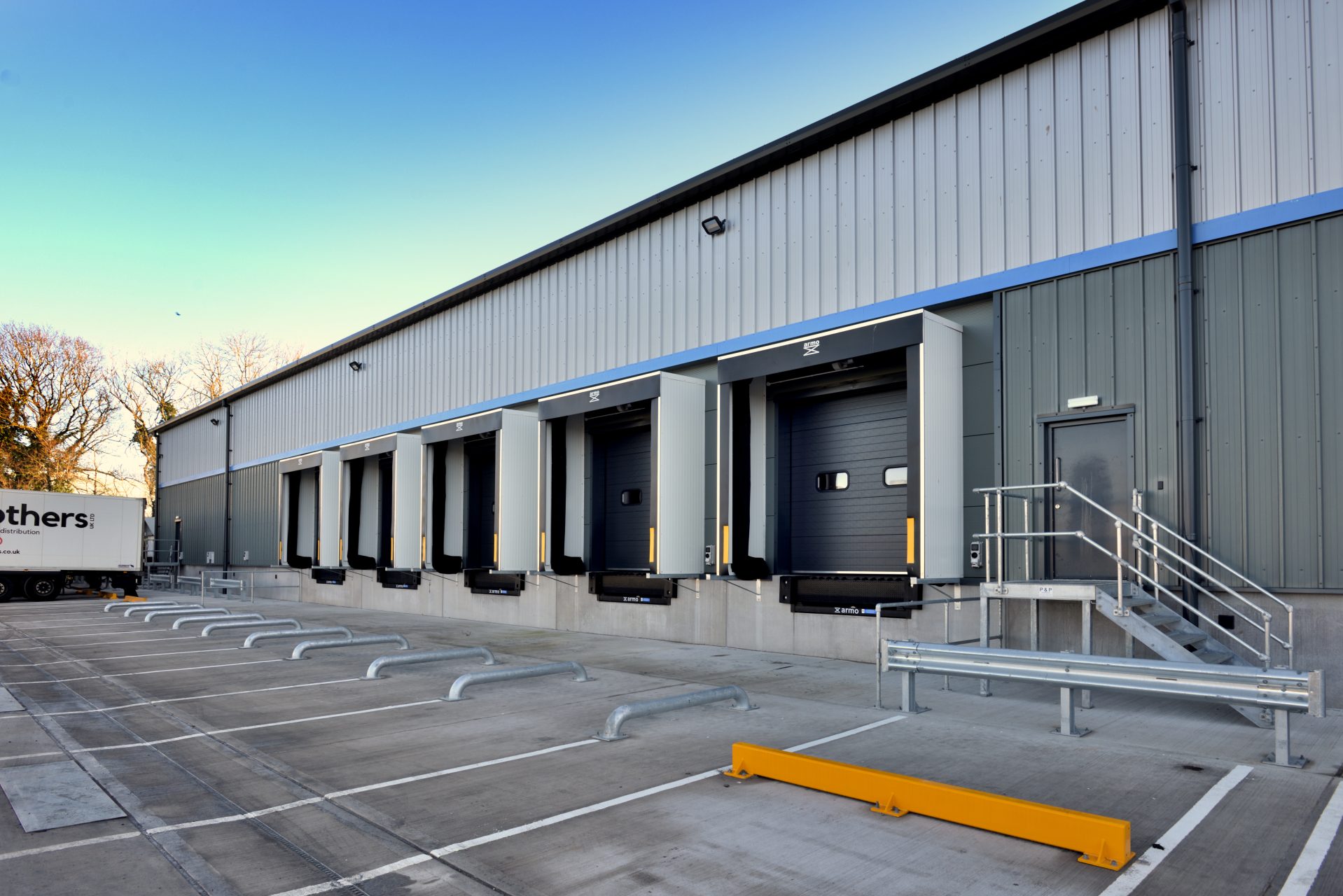

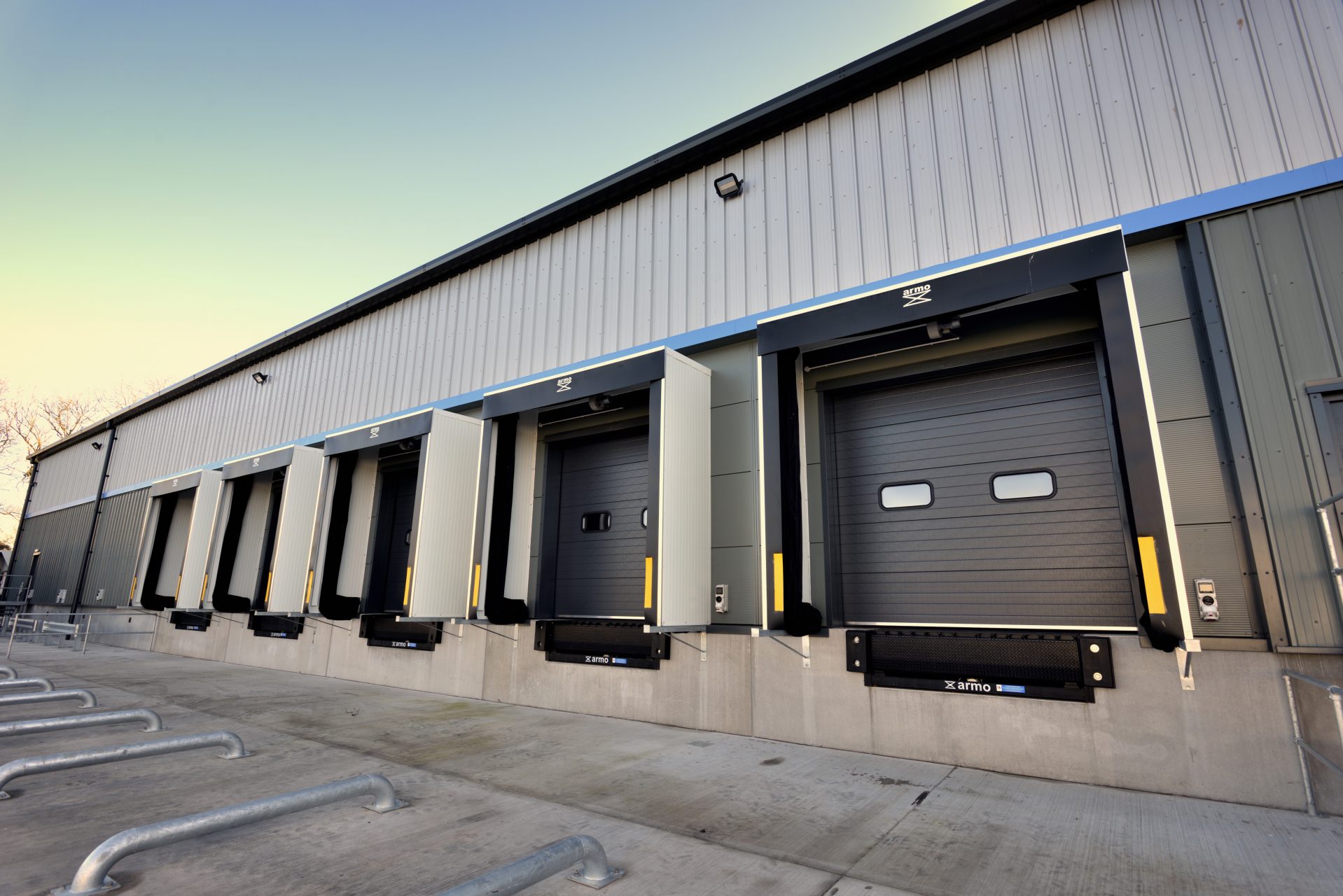

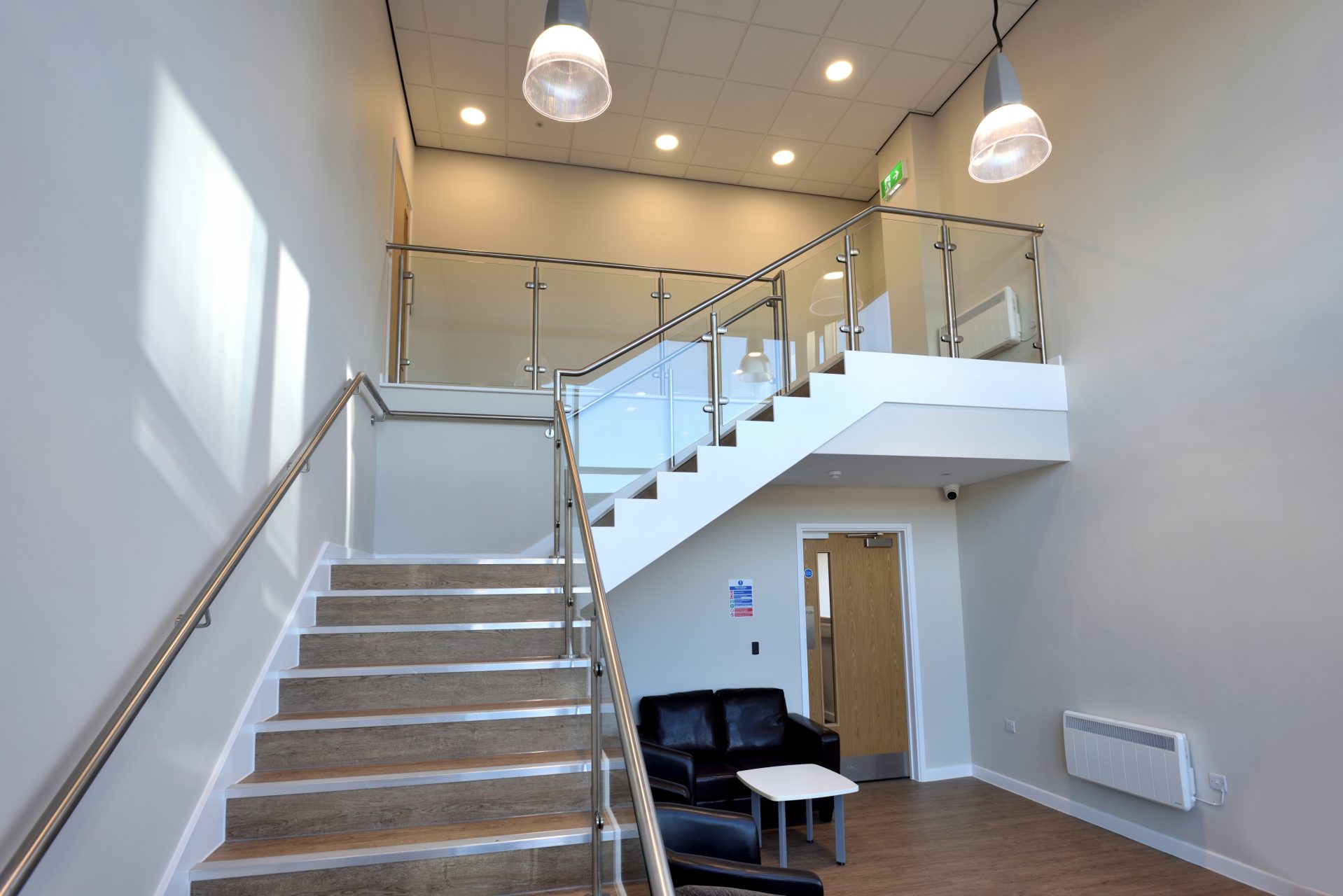

To begin this project we broke up and crushed an existing concrete hardstanding with the arisings re-used on-site in the permanent works.  Following this the design called for a steel framed, composite cladded unit measuring 65m x 20m and 12m high.  The temperature controlled chilled storage area is 55m x 20m and 8m high constructed using insulated interlocking cold storage panels and a 150m long x 1.3m high PCC retaining wall to the perimeter, with five dock levellers and roller shutter doors providing loading and unloading access.  There is 400m2 of high quality two storey office space with WCs, two kitchens, meeting rooms and open plan offices.  M&E included LED lighting throughout and comfort cooling to the office areas. Externally we constructed a new mesh reinforced concrete yard, concrete bases for cooling plant, a new sub-station and installed four EV charging points.
